Your Car’s A/C Blowing Warm? Here’s the Fix
If your A/C is blowing hot and your compressor seems to be clicking fast like it’s gasping for help, you’re probably low on R-134a refrigerant — and there’s a DIY car A/C recharge you can do on your own to remedy this.
I did this procedure on my Honda Civic, but the process works for just about any car — Ford, Chevy, Toyota, you name it. Here’s how to recharge your A/C system yourself and save serious money over a shop visit. And yes — this is a true DIY job anyone can do.
⛄ Winter Tip:
Did you know? Even when it’s cold outside, your car’s A/C still matters. Your defrost system relies on the A/C compressor to remove moisture and clear fog from your windshield. So if your A/C isn’t working, your winter visibility will probably suffer too — another reason to keep it properly charged year-round.
Tools You’ll Need
- Arctic Freeze AC gauge/hose set with R134a Refrigerant [Advance Auto Parts affiliate link]
- Safety glasses (protect your eyes!) [Amazon affiliate link]
- Gloves (optional, but a good idea too) [also Amazon affiliate link]
Step-by-Step Guide: DIY car A/C Recharge at Home
Step 1: Prep Your Car
Park in the shade, open the doors, and start the engine.

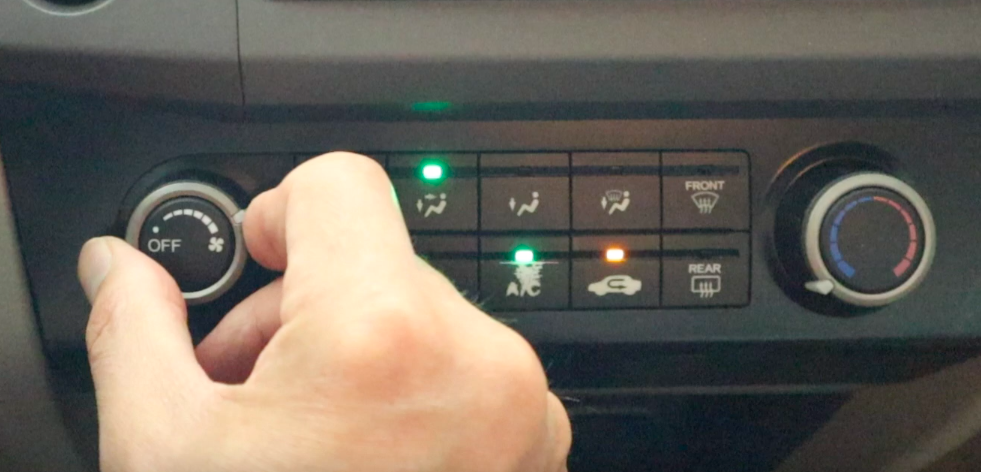

Set your A/C to MAX, fan on high, and recirculation ON.
✅ Hear the compressor click? That’s good.
🚫 No cold air? Keep going.
Step 2: Find the Low-Pressure Port

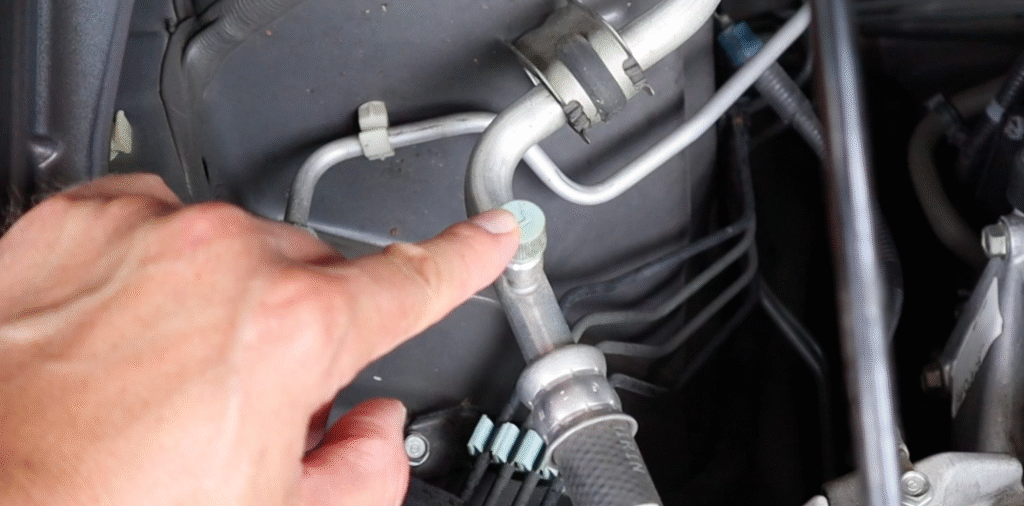

Pop the hood. Look for the thicker aluminum A/C line — not the skinny one.
Clean the cap and twist it off. On most cars (like my Civic) it’s near the firewall, but your location may vary.
🔎 Tip: If you’re unsure, check your owner’s manual, or ask in comment section below.
Step 3: Attach the Charge Hose
Remove shipping spacer between refrigerant can and AC gauge/charge hose. Give the can a good shake and reassemble.
Snap the quick-connect fitting from your charge hose onto the low-pressure port — you’ll feel it lock in place.
You’ll instantly see the A/C gauge needle bouncing up and down every few seconds — that’s normal.

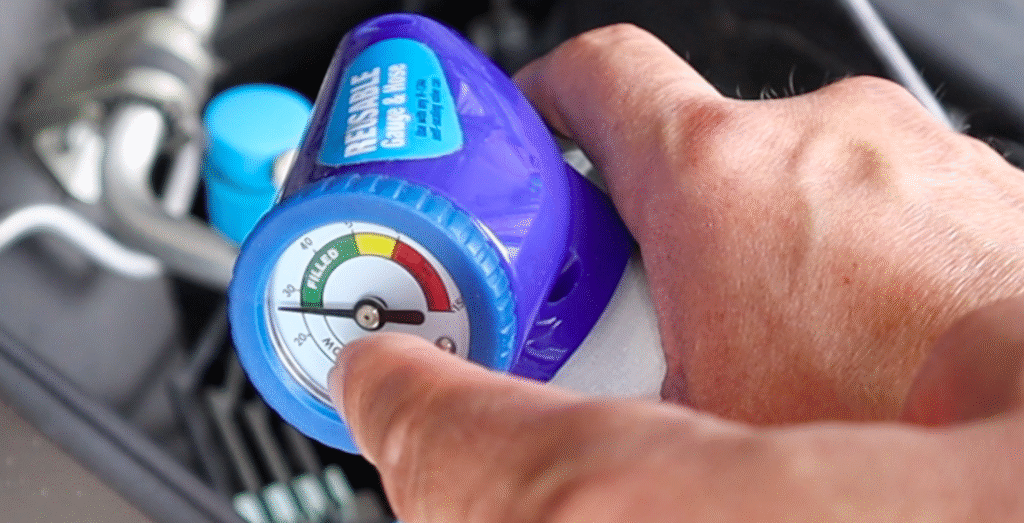

📊 If the gauge reads below green when the compressor is cycling on, you’re low on refrigerant.

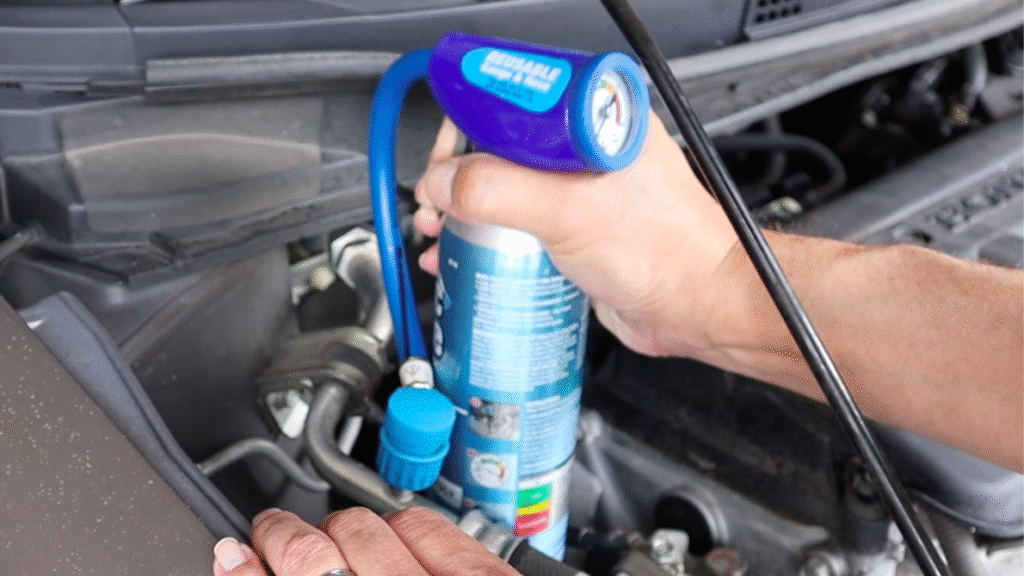

Step 4: Add Refrigerant/Freon
Hold the can upright.
Press the trigger for about 15 seconds, gently shaking the can.
Release, check the gauge, and repeat if the needle still reads low.
🟢 Green = good
🟡 Yellow = stop, it might be overfilled
🔴 Red = you’ve added too much, time to take it to the shop
Important: Keep the can upright and clear of moving belts.
Step 5: Test & Wrap Up

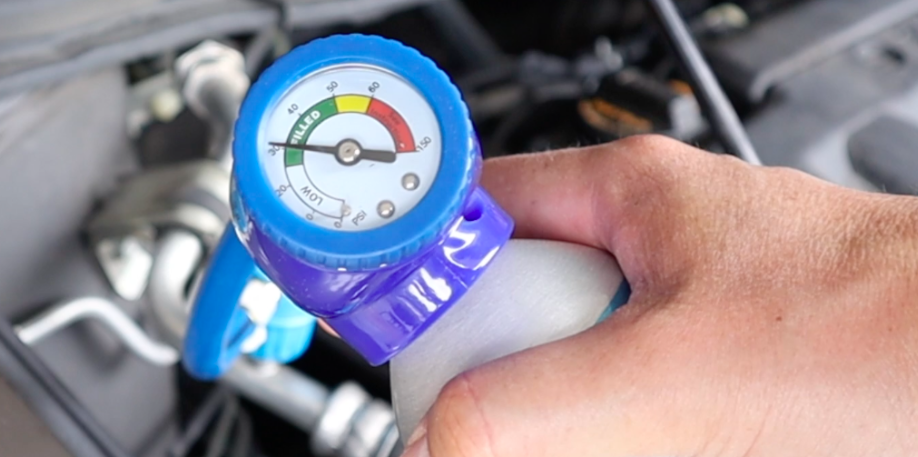

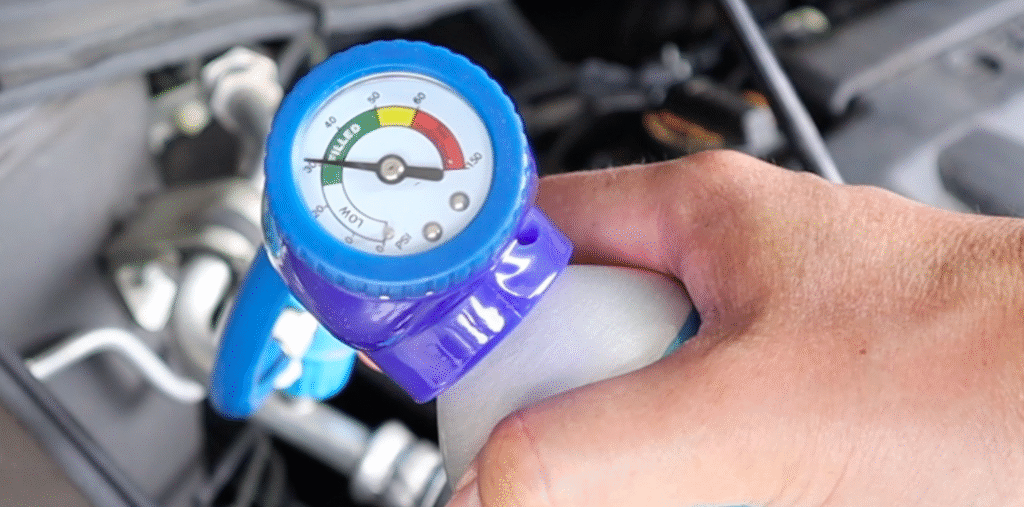

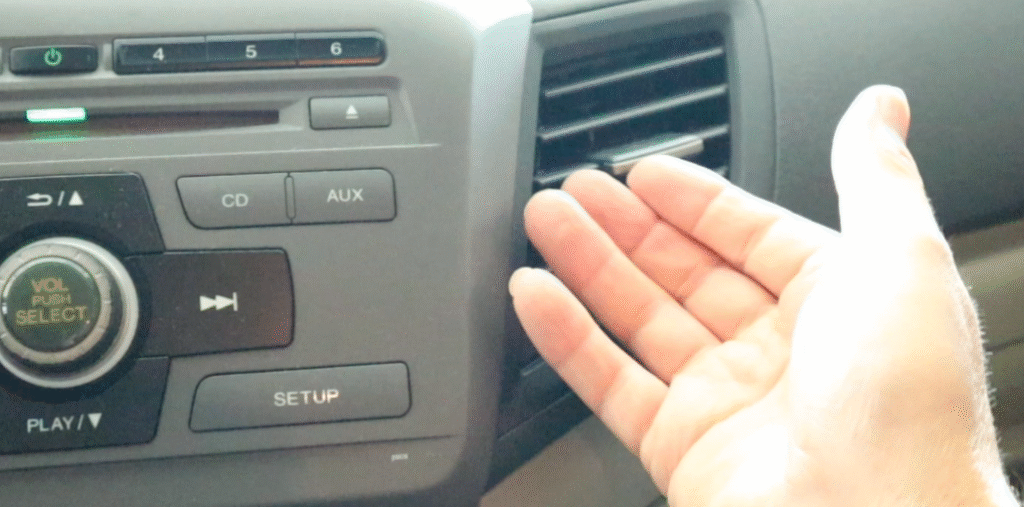

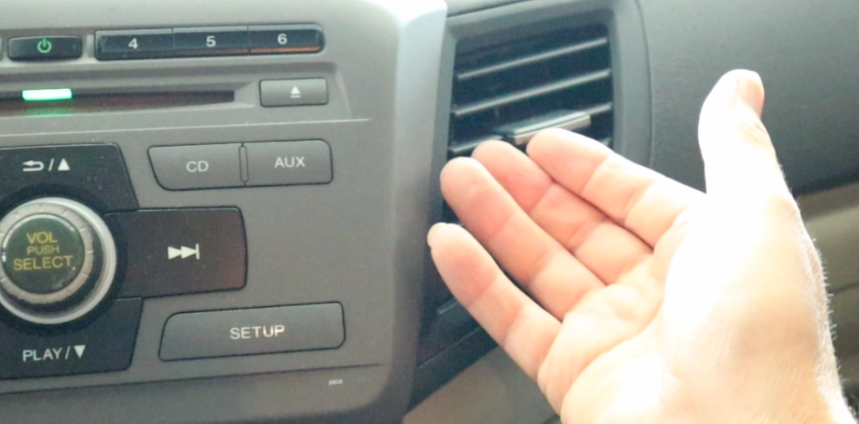

When your gauge climbs into the green, check the vents — they should be blowing cold again.
Disconnect the charge hose and replace cap back on the A/C port.
You’re done — DIY car A/C recharge complete. You just saved yourself $200 – $300 at the shop.
🔧 Pro Tip: A proper DIY A/C recharge should make your vents cold within minutes. You don’t have to wait long for results.
A Few Quick Rules During Your DIY Car A/C Recharge
- Keep the can upright; don’t let it hit the drive belt.
- Add refrigerant/freon only if your gauge reads low when the compressor engages (clicks on).
- Stop well below the yellow zone — more refrigerant doesn’t mean colder air. If you overfill your system, you can’t remove it yourself — only a technician with proper recovery equipment can do that (see this EPA guide on handling automotive refrigerants for why that’s required).
Common A/C Recharge Questions (DIY R-134a FAQs)
Check the label under the hood or near the A/C lines. If it says HFC-134a or R-134a, that’s the same refrigerant. Most cars from 1996–2020 use R-134a; newer models may use R-1234yf.
If your A/C blows warm and the compressor is cycling on and off, it’s probably low on refrigerant. Attach an A/C charge hose with a gauge—if the needle’s in the low zone, your system needs a recharge with R-134a.
If your A/C gauge needle bounces, that’s normal — it means the compressor is cycling on and off. As long as the lower reading stays in the green zone, your refrigerant level is fine. For a quick visual demo, check out my YouTube video above.
Yes — it’s easier than you think to overfill your A/C system. Add refrigerant in short 10–15 second bursts, then release the trigger and check the gauge. Once you’re in the green zone, stop. Adding more won’t make it colder — it can actually stop cooling altogether.
If your A/C compressor won’t kick on, attach charge hose and check pressure. A very low gauge reading means the system’s too empty to let the compressor engage—add refrigerant in short bursts until it reaches the green zone. If the gauge already reads green, check fuses or relays. See YouTube video for more.
If your system’s healthy, it’ll stay cold all summer — and your defrost will work better in winter. If it fades after a few weeks, you likely have a small leak. Try to locate/fix it before adding more refrigerant, or have a shop test it for you.
Yes — your A/C runs with defrost to clear fogged windows and remove moisture fast. Keeping it charged year-round keeps your windshield clear and your visibility sharp, keeping you safer in bad weather.
DIY Car A/C Recharge, Final Thoughts
This simple R-134a A/C recharge for your car takes about 20 minutes, costs a fraction of what a shop would charge, and keeps your car comfortable and safe year-round. It’s totally DIY, and you’ll be surprised how simple it really is.
Please comment below if you have any questions or would like to share a success story!
Ready to read my next post? Watch me do an honest review on AT-205 to help solve a rear main oil leak. Find it here.
A little note: If you purchase anything from Amazon or Advance Auto Parts as a result of clicking on one of my links above, I earn a small commission at no extra cost to you. That means you are helping to support my family just a tad, and I am so thankful.
One last thing: Please be safe when working on your vehicle. Do so at your own risk. I’m not a professional mechanic, just a regular guy. I’m simply demonstrating how I work on my own car. Okay, I had to get that out of way, thanks again for your support!
